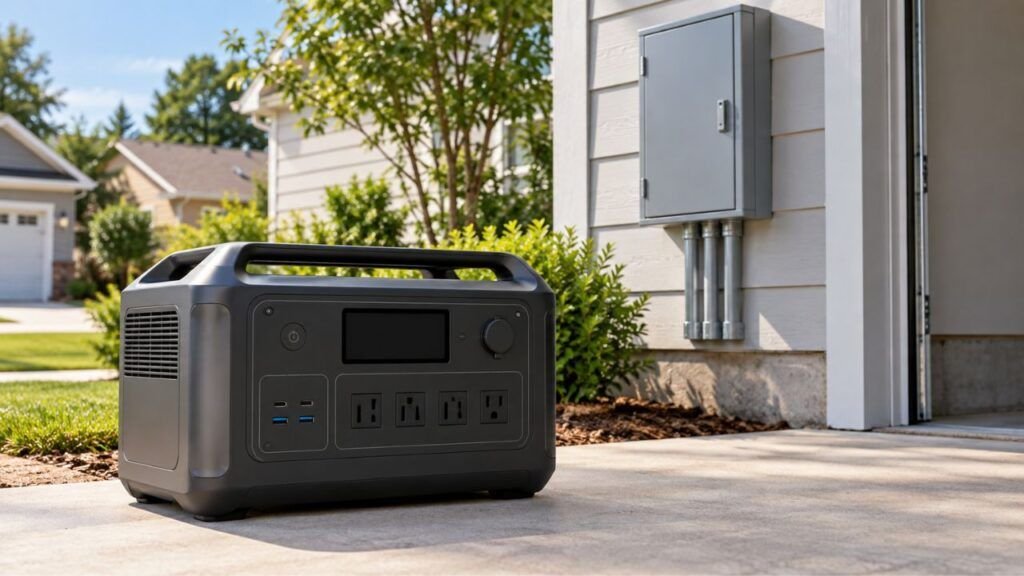

A solar generator transfer switch safely moves selected home circuits from utility power to the AC output of a solar generator. It keeps both power sources separated, helping prevent dangerous backfeeding into utility lines.
In this guide, I’ll show you exactly how that process works. We’ll also cover manual and automatic switches, 120V versus 240V systems, circuit selection, compatibility, and common setup limitations.
Key Takeaways
- A transfer switch safely changes selected circuits between two power sources.
- Utility power and solar generator power remain electrically separated.
- Solar panels normally charge the battery rather than the transfer switch.
- The solar generator inverter supplies AC power to the transfer switch.
- Manual switches require you to change the power source yourself.
- Automatic systems can detect outages and transfer power automatically.
- A transfer switch does not increase inverter wattage or battery capacity.
- A 120V solar generator normally cannot power standard 240V household loads.
- Your transfer equipment must match the solar generator and electrical system.
- Permanent electrical connections should follow local electrical requirements.
What Is a Solar Generator Transfer Switch?
A solar generator transfer switch is an electrical device that lets selected home circuits receive power from either utility electricity or a solar generator.
During normal conditions, those circuits receive electricity from the utility grid. During an outage, the switch can move them to backup power.
The important part is isolation.
The switch prevents the utility source and solar generator from improperly feeding the same circuits together.
Most transfer systems use a break-before-make approach. One source is disconnected before the other source becomes connected.
That controlled changeover makes home backup much safer than improvised connections.
Some modern systems go much further than basic switching. They may also include circuit breakers, monitoring, load management, battery controls, and smartphone app features.
How Does a Solar Generator Transfer Switch Work?
The basic process is surprisingly simple once you separate each component. The solar panels charge the battery, the inverter produces AC electricity, and the transfer switch decides which AC source feeds your selected circuits.
Step 1: Your Home Normally Uses Utility Power
Under normal conditions, your selected household circuits receive utility electricity.
Your refrigerator, lights, furnace, and other connected loads work normally.
Meanwhile, the solar generator can remain charged and ready.
If solar panels are attached, they can keep charging its battery separately.
Nothing needs to happen at the transfer switch until backup power becomes necessary.
Step 2: Utility Power Goes Out
The next step depends on your transfer-switch type.
With a manual transfer switch, the switch normally does nothing by itself. You notice the outage and manually change the power source.
An automatic or smart system behaves differently.
It can monitor incoming utility electricity and recognize when acceptable grid power disappears.
The system then begins its transfer sequence.
Step 3: The Utility Source Is Disconnected
Before backup electricity reaches your house, the utility connection must be isolated from those backup circuits.
This step is extremely important.
The transfer equipment disconnects the selected circuits from normal utility power before connecting the backup source.
That separation helps prevent electricity from the solar generator from flowing backward toward utility lines.
Step 4: The Solar Generator Takes Over
Once the utility source has been isolated, the transfer system connects the selected circuits to your solar generator.
Inside the solar generator, stored battery energy is DC electricity.
The built-in inverter converts that DC electricity into household AC power.
That AC power then travels through the approved home-backup connection and reaches the transfer equipment.
Your chosen circuits can now operate from battery power.
Depending on your system capacity, those circuits might include:
- Refrigerator
- Freezer
- LED lights
- Internet equipment
- Gas furnace
- Sump pump
- Selected outlets
- Small household appliances
The transfer switch does not determine how many appliances you can run.
That depends mainly on your inverter capacity, voltage, starting surge, and battery size.
Step 5: Solar Panels Recharge the Battery
This part causes plenty of confusion.
Solar panels usually do not send raw solar electricity directly through a transfer switch.
Instead, the normal power path looks like this:
Solar panels → solar generator → battery → inverter → transfer switch → home circuits
The solar panels recharge your battery.
The inverter then converts battery power into usable household AC electricity.
The transfer switch handles that AC source.
This distinction becomes important when choosing equipment because the transfer switch is not a solar charge controller.
Step 6: Utility Power Returns
Once utility electricity returns, the system eventually moves your circuits back to grid power.
With a manual transfer switch, you normally perform this change yourself according to the system instructions.
With an automatic system, the controller can detect restored utility power.
It then transfers the selected circuits back to their normal source.
The solar generator can return to charging or standby operation afterward.
Solar Generator Transfer Switch Power Flow
It helps to look at the whole sequence in one place. The table below shows what happens during normal operation, an outage, backup operation, and restoration.
| Stage | Power Source | What the Transfer System Does | What Powers Your Appliances |
| Normal operation | Utility grid | Keeps selected circuits connected to utility | Utility power |
| Outage begins | Utility unavailable | Manual switch waits or automatic system detects failure | Power may briefly stop |
| Transfer | Solar generator available | Isolates utility and selects backup source | Solar generator inverter |
| Backup operation | Battery and inverter | Keeps backup circuits connected | Stored battery energy |
| Solar charging | Solar panels | Usually does not handle panel DC power | Panels recharge battery |
| Utility restored | Utility grid | Returns circuits to normal source | Utility power |
Why Does a Transfer Switch Prevent Backfeeding?
Backfeeding happens when electricity from a backup source travels into wiring that should remain isolated from that source.
That can create serious electrical hazards.
A properly designed transfer system prevents this by keeping the utility supply and backup power source separated.
Think of it as a gate.
When utility power is connected, the generator side stays separated.
When backup power is connected, the utility side stays separated.
The important idea is simple:
Two possible power sources exist, but the transfer system controls which one reaches your selected circuits.
This is one reason you should never improvise a household backup connection.
Manual vs. Automatic Solar Generator Transfer Switch
Manual and automatic transfer switches perform the same basic job. The main difference is who controls the change from utility power to backup power.
| Feature | Manual Transfer Switch | Automatic or Smart Transfer System |
| Detects an outage | No | Usually |
| Changes sources automatically | No | Yes, when supported |
| Works when nobody is home | Not automatically | Usually |
| Complexity | Lower | Higher |
| Typical cost | Lower | Higher |
| App monitoring | Usually no | Often available |
| Load management | Usually manual | Available on some systems |
| Circuit monitoring | Limited | Often available |
| Setup flexibility | Often broad | May require compatible equipment |
| Best use | Occasional backup | Automated home backup |
Neither type is automatically better for everyone.
A simple manual system can work very well for occasional outages.
An automatic system makes more sense when you want hands-off operation.
How Does a Manual Solar Generator Transfer Switch Work During an Outage?
A manual transfer system requires you to manage the changeover yourself. The exact controls vary by product, but the basic operating process generally looks like this.
- Utility power goes out.
- You confirm that backup power is needed.
- The solar generator is prepared for AC output.
- The approved home connection supplies power to the transfer equipment.
- Selected circuits are transferred from utility to backup power.
- Essential household loads begin using solar generator power.
- You monitor your power usage and remaining battery capacity.
- Utility power eventually returns.
- The selected circuits are transferred back to utility power.
- The solar generator returns to charging or standby operation.
A manual switch does not normally monitor utility voltage for you.
It simply gives you a safe way to select the available power source.
How Does an Automatic or Smart Transfer Switch Work?
An automatic transfer system adds monitoring and control to the same basic transfer process. Some modern systems also communicate directly with compatible battery power stations.
Grid Monitoring
The controller monitors your normal utility source.
It checks whether acceptable grid electricity remains available.
The exact voltage and frequency thresholds depend on the equipment.
Outage Detection
When utility conditions fall outside the acceptable range, the system recognizes the outage.
It can then begin the transfer process without you touching the panel.
Source Isolation
The system disconnects the appropriate utility connection before supplying backup electricity.
This keeps both sources separated.
Backup Power Verification
Some systems also verify that backup power is available before completing the transfer.
This can involve communication with a compatible battery or power station.
Not every solar generator supports this feature.
Automatic Load Transfer
Once the backup source is available, selected circuits receive solar generator power.
The switchover may happen very quickly with some integrated systems.
Other systems may take longer.
Load Prioritization
Smart systems can sometimes decide which circuits deserve backup power first.
You might give higher priority to:
- Refrigerator
- Heating equipment
- Internet equipment
- Lighting
- Sump pump
Lower-priority appliances can be disabled automatically when battery capacity becomes limited.
This can significantly extend usable backup time.
Automatic Return to Utility Power
When acceptable utility electricity returns, the controller switches your home circuits back.
The exact timing depends on the system.
Some equipment waits briefly to confirm that utility power has stabilized.
Is a Solar Generator Transfer Switch the Same as a Smart Home Panel?
Not always.
A traditional transfer switch has one basic responsibility: changing loads between normal and backup power sources.
A smart home panel can combine several additional functions.
Depending on the model, it may include:
- Transfer switching
- Circuit breakers
- Backup-load distribution
- Energy monitoring
- Circuit-level monitoring
- Load shedding
- Battery controls
- Solar management
- Charging schedules
- Time-of-use controls
- Smartphone app access
So, a smart home panel may contain transfer-switch functionality.
However, every transfer switch is not automatically a smart home panel.
How Fast Does an Automatic Transfer Switch Change to Battery Power?
Transfer speed depends on the exact system. There is no single transfer time that applies to every automatic switch.
Some integrated battery backup systems can transfer in roughly milliseconds.
That may be fast enough for many household electronics to continue operating with little noticeable interruption.
Other systems take longer.
Transfer time can depend on:
- Transfer-switch design
- Inverter status
- Battery operating mode
- Communication between components
- UPS settings
- Power quality
- Manufacturer programming
This is important if you need uninterrupted operation.
A fast transfer switch should not automatically be treated as identical to an online UPS.
If uninterrupted power matters for sensitive equipment, check the manufacturer’s transfer-time specifications.
Can Any Solar Generator Work With a Transfer Switch?
No. A solar generator needs to match the transfer equipment and your home’s electrical requirements.
Several specifications matter, and checking only the wattage is not enough.
AC Output Voltage
Start with voltage.
Many smaller portable power stations provide only 120V AC output.
Most U.S. homes use 120/240V split-phase electrical service.
A 120V power station may still support important household circuits.
However, it normally cannot directly power standard 240V loads.
Continuous Inverter Output
Your solar generator must provide enough continuous wattage for the appliances running together.
Suppose your essential circuits require 2,800 watts.
A 2,000-watt inverter cannot supply them continuously just because you installed a larger transfer switch.
The inverter remains the limiting factor.
Surge Capacity
Some appliances briefly need much more power when starting.
Common examples include:
- Refrigerators
- Freezers
- Sump pumps
- Well pumps
- Air conditioners
- Furnace blowers
- Power tools
Your solar generator must handle those startup surges.
Output Connection and Current Rating
Home backup equipment can use different connection types and amperage ratings.
You may encounter 30-amp or 50-amp systems, among others.
The solar generator, cable, inlet, transfer equipment, and circuit design need to work together correctly.
Avoid relying on random adapters to solve incompatibility problems.
Neutral and Grounding Arrangement
Neutral and grounding configuration is another important consideration.
Portable power stations do not all handle neutral and ground in exactly the same way.
Transfer equipment also varies.
This is one reason home backup compatibility needs to be checked using the manufacturer’s instructions and appropriate electrical guidance.
Automatic Transfer Support
A solar generator can work perfectly with a manual transfer switch while still being incompatible with an automatic smart system.
Automatic integration may require:
- Communication ports
- Dedicated control cables
- Supported firmware
- Remote inverter control
- Compatible battery hardware
- Brand-specific accessories
Never assume automatic compatibility simply because the AC voltage matches.
Battery Capacity
Battery capacity affects runtime.
It does not determine whether the transfer switch can physically transfer the load.
A 5,000Wh battery should generally run the same load longer than a 2,000Wh battery.
However, inverter output still determines how much power you can deliver at one time.
120V vs. 120/240V Solar Generators With a Transfer Switch
Voltage is one of the most important compatibility questions for U.S. homeowners. Your generator must provide the voltage required by the circuits you want to back up.
| Solar Generator Output | Typical Backup Possibilities | Main Limitation |
| 120V only | Lights, refrigerator, router, furnace, selected outlets | Cannot normally supply standard 240V loads |
| 120/240V split-phase | 120V circuits and compatible 240V loads | Still limited by inverter and surge output |
| Expandable paired system | May provide split-phase or higher output | Requires specifically supported equipment |
Many essential appliances run on 120V.
That makes smaller power stations useful even without 240V output.
However, many larger household loads commonly use 240V.
Examples can include:
- Central air conditioners
- Electric dryers
- Electric ranges
- Electric water heaters
- Larger well pumps
- Some heat pumps
- EV chargers
Always verify the appliance nameplate before assuming its voltage.
Which Home Circuits Can a Solar Generator Transfer Switch Power?
The transfer switch does not create additional power. Your solar generator must still supply every watt used by the circuits connected during backup operation.
Common priority circuits include:
- Refrigerator
- Freezer
- Internet modem
- Wi-Fi router
- LED lighting
- Gas furnace controls and blower
- Sump pump
- Compatible well pump
- Medical equipment
- Selected outlets
Larger appliances may require much more capacity.
These can include:
- Electric water heaters
- Clothes dryers
- Electric ranges
- Central air conditioners
- Large heat pumps
- EV chargers
The best approach is usually to identify essential loads first.
Then calculate their running and startup power requirements.
What Is a Critical Loads Panel?
A critical loads panel contains household circuits that you want available during an outage.
Instead of trying to power every circuit in your house, you select the most important ones.
For example, your critical loads might include:
- Refrigerator
- Furnace
- Kitchen lighting
- Bedroom lighting
- Internet equipment
- Sump pump
This approach makes smaller backup systems much more practical.
A solar generator capable of supplying 3,000 to 5,000 watts may not power an entire large house.
However, it can still keep important systems operating.
Some smart backup panels effectively include critical-load management inside the same system.
Transfer Switch vs. Inlet Box vs. Breaker Interlock vs. UPS
Several home backup components are often confused with each other. Each one has a different job within the electrical system.
| Device | Main Job | Selects Power Source? | Automatically Detects Outage? |
| Transfer switch | Changes loads between utility and backup power | Yes | Only automatic types |
| Power inlet box | Provides a connection point for portable backup power | No | No |
| Breaker interlock | Prevents incompatible breaker positions | Through breaker operation | No |
| Critical-load panel | Holds circuits selected for backup | Not by itself | No |
| UPS | Keeps connected devices powered through interruptions | Internally | Usually |
| Smart home panel | Combines backup switching and energy controls | Yes | Often |
An inlet box alone is not a transfer switch.
Likewise, a transfer switch is not automatically a UPS.
Understanding these differences can prevent expensive compatibility mistakes.
What a Solar Generator Transfer Switch Does Not Do
Transfer switches are useful, but they cannot overcome the limits of your solar generator.
- It does not increase inverter wattage.
- It does not increase battery capacity.
- It does not turn 120V output into 240V output.
- It does not eliminate appliance startup surges.
- A manual switch does not detect outages automatically.
- A basic transfer switch does not charge your battery.
- It does not make every power station compatible.
- It does not guarantee zero-interruption power.
- It does not replace proper circuit protection.
- It does not automatically make every home circuit usable.
Think of the transfer switch as a traffic controller.
It manages the power path.
It does not create the electricity itself.
What Happens If the Solar Generator Battery Runs Out?
If the battery reaches its low-voltage cutoff during an outage, the inverter will normally stop supplying backup AC power.
With a basic manual setup, your backed-up circuits then lose electricity.
They remain without power until you recharge the battery or restore another usable power source.
Smart systems may provide additional options.
Depending on the design, they can sometimes:
- Shed lower-priority circuits
- Maintain a battery reserve
- Recharge from solar
- Recharge from utility power
- Switch to another supported source
- Notify you through an app
However, a normal transfer switch cannot create another energy source when your battery becomes empty.
Does the Solar Generator Keep Charging While It Powers the House?
Many solar generators can accept solar charging while simultaneously powering appliances.
However, that capability comes from the power station, not the transfer switch.
Suppose your house is drawing 1,500 watts.
Your solar panels are currently producing 800 watts.
The panels can offset part of that demand.
The battery must still supply the remaining power, plus normal conversion losses.
If the panels produce more than the home is currently using, some systems can use the excess energy to recharge the battery.
Clouds, panel orientation, temperature, and sunlight conditions all affect solar production.
Manual Transfer Switch vs. Breaker Interlock for a Solar Generator
A transfer switch and breaker interlock can both be part of a safe backup-power design, but they work differently.
A transfer switch directly changes selected circuits between normal and backup power.
Some transfer switches use a dedicated backup subpanel.
A breaker interlock works at the electrical panel.
It mechanically prevents certain breakers from being switched on together in an unsafe combination.
Which setup makes sense depends on:
- Electrical panel design
- Solar generator output
- Voltage requirements
- Number of circuits
- Local electrical rules
- Desired backup capacity
Neither option should be chosen only because it is cheaper.
Compatibility and safe operation matter more.
How to Choose a Transfer Switch for a Solar Generator
Several specifications need to match before a transfer switch and solar generator can work together safely. Pay particular attention to voltage, current, circuit count, and the type of integration you want.
Match the Voltage
Check whether your solar generator supplies 120V or 120/240V output.
Then determine which household circuits you want to support.
A voltage mismatch can make certain circuits unusable.
Match the Current Rating
Transfer equipment also has current limits.
Common home-backup systems may be rated for different amperages.
Your entire power path must be appropriately sized.
Check the Number of Backup Circuits
Think about what you truly need during an outage.
You may only need six important circuits today.
However, future appliances could increase your backup requirements.
Verify Solar Generator Compatibility
Check the manufacturer’s documentation carefully.
This becomes especially important with automatic and smart systems.
A smart panel may only communicate with specific battery systems.
Check Neutral and Ground Requirements
Neutral and ground arrangements vary across inverter systems.
Make sure the electrical configuration works with the chosen transfer equipment.
This is an area where professional evaluation is particularly valuable.
Look for Appropriate Safety Certification
Use equipment designed and listed for its intended electrical purpose.
In the U.S., you may see transfer equipment associated with standards such as UL 1008.
Also check local installation and inspection requirements.
Decide Between Manual and Automatic Operation
Manual systems are simpler and usually less expensive.
Automatic systems offer more convenience.
Consider how often outages happen in your area.
Also think about whether backup power must work when nobody is home.
Consider Load Management
Load management becomes especially valuable with battery backup.
Running every available circuit can drain a battery quickly.
Smart systems can sometimes disable unnecessary circuits and preserve energy for essential appliances.
Can a Solar Generator Transfer Switch Power the Whole House?
It can be part of a whole-home backup system, but the transfer switch does not determine your actual power capacity.
Whole-house backup depends on several factors:
- Inverter wattage
- Surge capacity
- 120/240V capability
- Battery capacity
- Transfer-switch rating
- Simultaneous household demand
- Number of backed-up circuits
- Load-management features
A large split-phase battery system may support many household circuits.
A smaller portable power station is usually better suited to essential loads.
For example, powering your refrigerator, lights, router, and furnace can be realistic with many systems.
Running those loads together with central air conditioning, an electric dryer, range, and water heater requires far more capacity.
Do You Need a Transfer Switch to Use a Solar Generator at Home?
Not always.
You do not need a transfer switch when plugging appliances directly into the solar generator.
For example, you can connect your refrigerator or lamp directly to the power station’s outlets.
A transfer system becomes relevant when you want the solar generator to supply your home’s permanent branch circuits.
That means using your existing wall outlets, lights, furnace circuit, pump circuit, or other permanently wired loads.
This is where transfer or other approved interconnection equipment becomes important.
Solar Generator Transfer Switch Safety and U.S. Code Considerations
Home electrical systems involve high voltage and significant current. Your backup setup should follow the solar generator manufacturer’s requirements and applicable local electrical rules.
Important points include:
- Use proper transfer or interconnection equipment.
- Keep utility and backup sources safely separated.
- Verify voltage before connecting equipment.
- Match the current rating of every component.
- Check inverter neutral and grounding requirements.
- Use equipment listed for its intended application.
- Never create an improvised backfeed connection.
- Follow the power-station manufacturer’s installation requirements.
- Check local permit and inspection requirements.
- Use a qualified electrician for permanent panel work.
Electrical-code adoption can vary between states and local jurisdictions.
Your local authority may also have additional requirements.
Simple Solar Generator Transfer Switch Example
A simple example makes the system easier to understand. Imagine you want to back up your refrigerator, furnace, internet equipment, and several lights.
During normal conditions, the power path looks like this:
Utility grid → transfer equipment → refrigerator, furnace, router, and lights
Then a storm causes an outage.
The backup path becomes:
Solar generator inverter → transfer equipment → refrigerator, furnace, router, and lights
Meanwhile, your solar charging path remains separate:
Solar panels → solar generator battery
The panels recharge the stored battery energy.
The battery feeds the inverter.
The inverter provides AC electricity to your selected home circuits.
Once utility electricity returns, those circuits move back to their normal power source.
That is the basic job of a solar generator transfer switch.
Final Words
A solar generator transfer switch works by safely changing selected household circuits between utility electricity and the AC output from your solar generator. Its most important job is keeping those two power sources properly isolated.
Remember that the transfer switch does not create power. Your solar generator’s battery stores the energy, while its inverter creates usable AC electricity.
Before building a home backup setup, check voltage, inverter output, surge requirements, battery capacity, circuit priorities, and transfer-switch compatibility. Getting those basics right gives you a much safer and more useful backup system.
Related FAQs
Do I Need a Transfer Switch for a Solar Generator?
You only need transfer or similar approved interconnection equipment when using the solar generator to power your home’s permanent electrical circuits. Appliances plugged directly into the generator’s outlets do not require a home transfer switch.
Can Any Solar Generator Connect to a Transfer Switch?
No. The generator must match the transfer system’s voltage, current, output connection, neutral and grounding arrangement, and other compatibility requirements. Smart systems may also require specific supported power stations.
Can a 120V Solar Generator Work With a Transfer Switch?
Yes. A 120V solar generator can work with compatible transfer equipment for appropriate 120V household circuits. However, it normally cannot directly supply standard 240V loads.
Can a Solar Generator Run 240V Circuits Through a Transfer Switch?
Yes, but only when the solar generator or battery system can provide compatible 120/240V split-phase output. The transfer switch alone cannot convert a 120V generator into a 240V power source.
Does a Transfer Switch Charge the Solar Generator?
No. The transfer switch normally manages which power source supplies your household circuits. Battery charging is handled by the solar generator’s charging system through solar panels, utility power, or another supported charging source.
Does a Transfer Switch Automatically Turn On a Solar Generator?
A manual transfer switch does not. Some compatible automatic or smart systems can communicate with battery power stations and coordinate backup operation, but this feature depends on the specific equipment.
How Fast Does an Automatic Solar Transfer Switch Work?
Transfer time varies by system. Some integrated battery systems switch within milliseconds, while others take longer. Always check the manufacturer’s stated transfer time when sensitive electronics require rapid backup.
Can Solar Panels Charge the Generator During an Outage?
Yes, many solar generators can continue receiving solar power during an outage. Available charging speed depends on panel wattage, sunlight, charging limits, and how much power your household is using.
Can a Transfer Switch Power My Entire House?
The transfer switch can route power to many circuits, but whole-house capability depends on your solar generator’s inverter output, voltage, battery capacity, surge rating, and the home’s actual electrical demand.
What Happens When the Solar Generator Battery Dies?
The inverter normally shuts down when the battery reaches its low-charge limit. Your backed-up circuits then lose power unless another supported energy source becomes available or the battery is recharged.
Is a Transfer Switch the Same as a Breaker Interlock?
No. A transfer switch directly changes loads between power sources. A breaker interlock mechanically prevents incompatible utility and backup breakers from being switched on together at the electrical panel.
Is a Smart Home Panel a Transfer Switch?
A smart home panel may include transfer-switch functionality, but it often does much more. It can also provide energy monitoring, load management, circuit prioritization, battery controls, and app-based automation.
Can I Use My Existing Generator Transfer Switch With a Portable Power Station?
Possibly. You need to check voltage, amperage, receptacle type, inverter output, neutral and grounding arrangement, and the transfer-switch requirements before connecting a portable power station.
Can I Install a Solar Generator Transfer Switch Myself?
Permanent work involving your home’s electrical panel should follow the equipment instructions and applicable local electrical requirements. A qualified electrician is generally the safest choice for transfer-switch installation and compatibility checks.
Blake Cooper writes practical guides on generators, portable power stations, and home backup systems. He focuses on simplifying power topics and helping homeowners make informed buying decisions.
